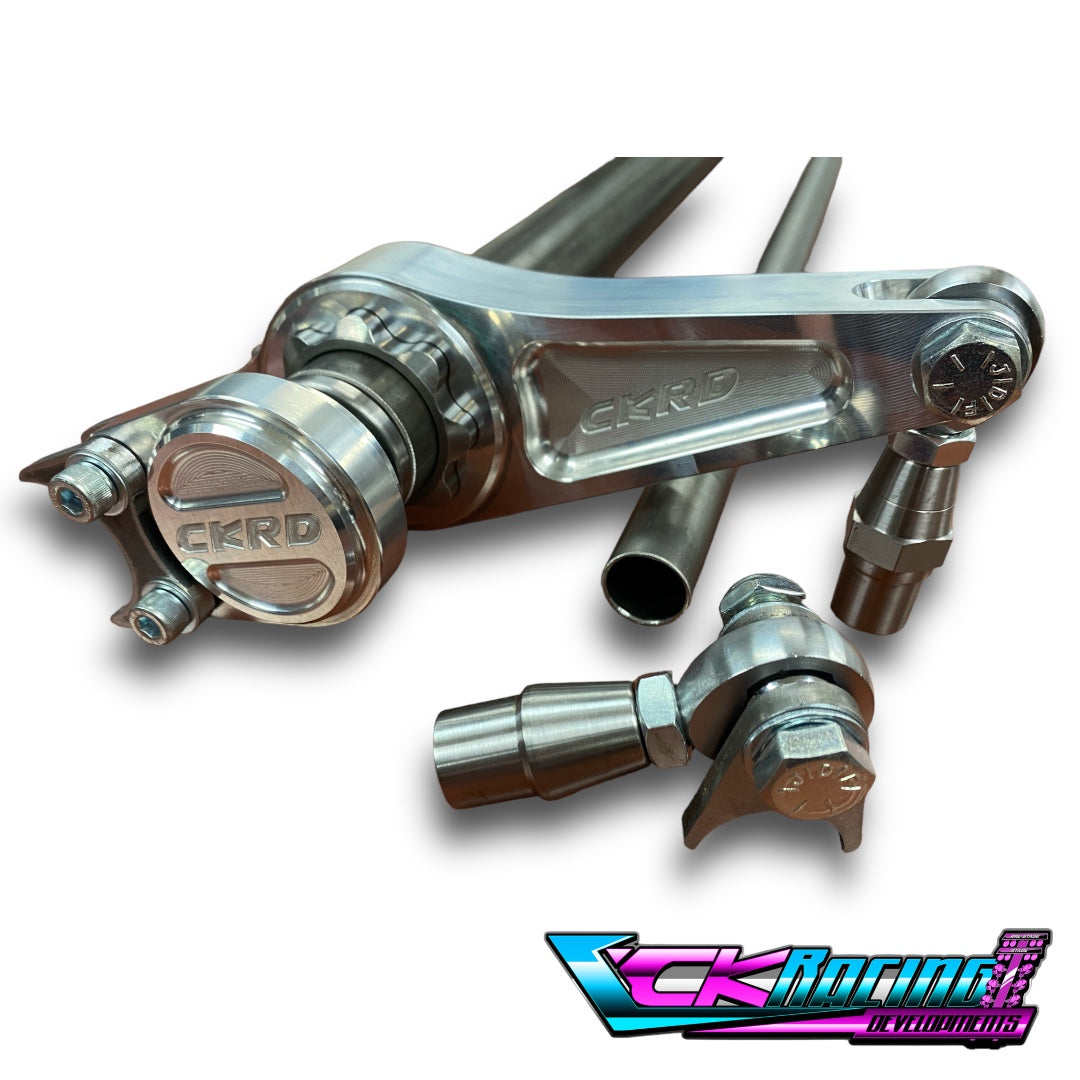

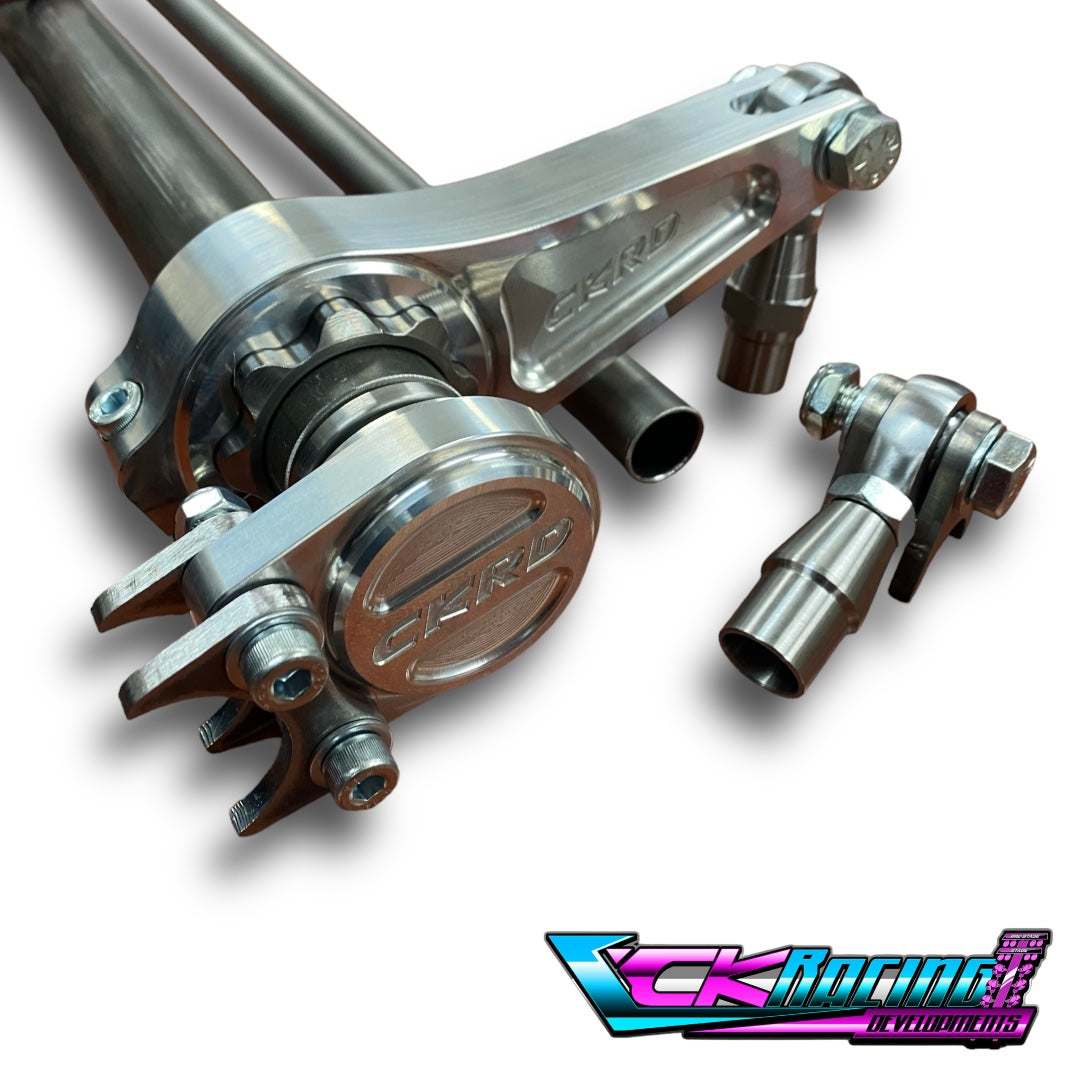

ARB arms and bearing mounts are both made from 6061 billet.
Spigots and splines are both made from 4140 steel
Specifications:
Torque tube is 1-3/4" .120 wall 4130 tube & 900mm in length
ARB arm linkages are 1" .065 wall 4130 tube & 600mm in length
Chromoly 1/2" rod end with jams nuts LH & RH side
4140 tube adaptor to suit the 1" tube and 1/2 rod ends, LH tube adaptors are hex
The kit includes all hardware and welding tabs required to complete the installation.
Mounting options:

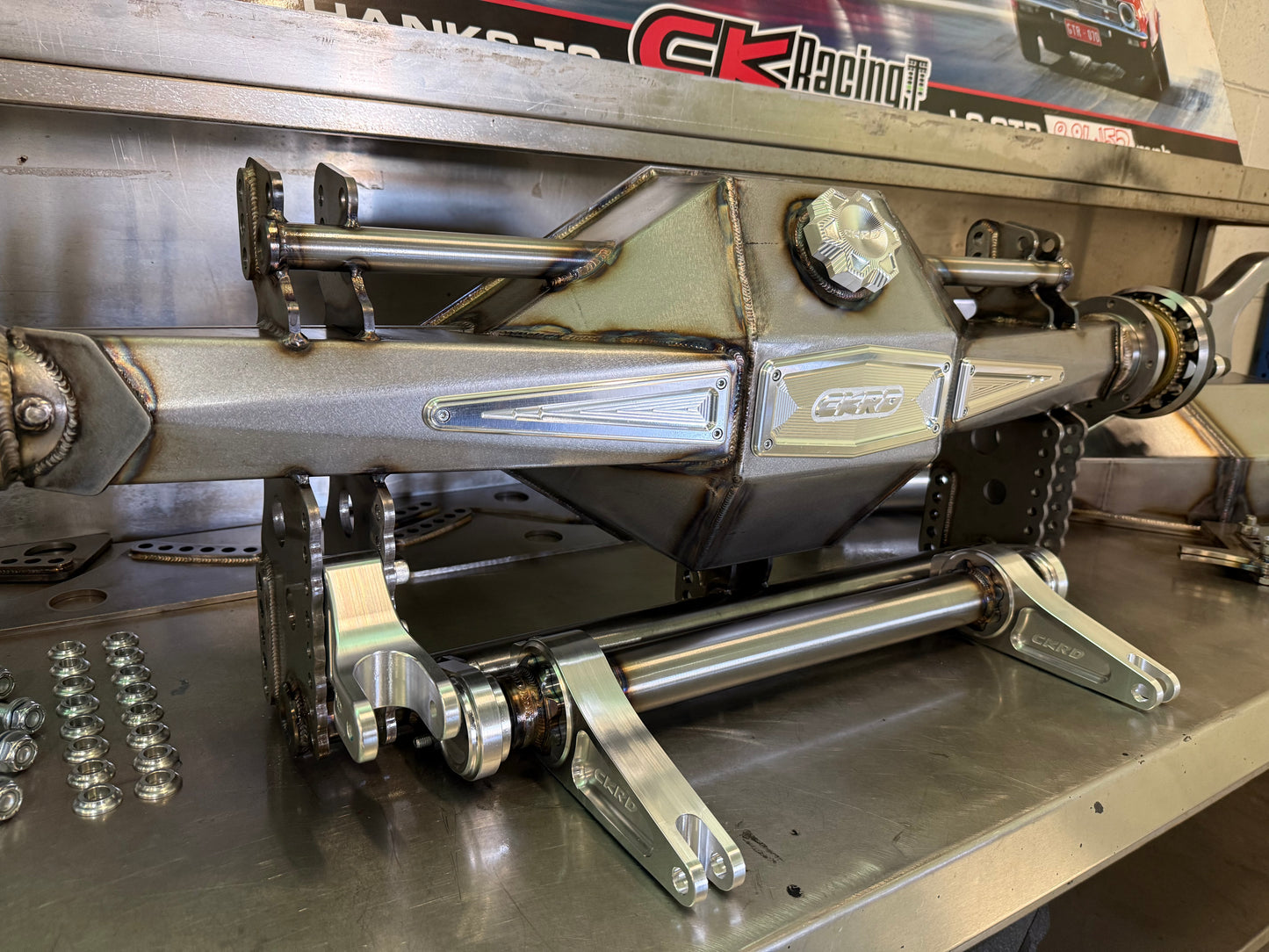

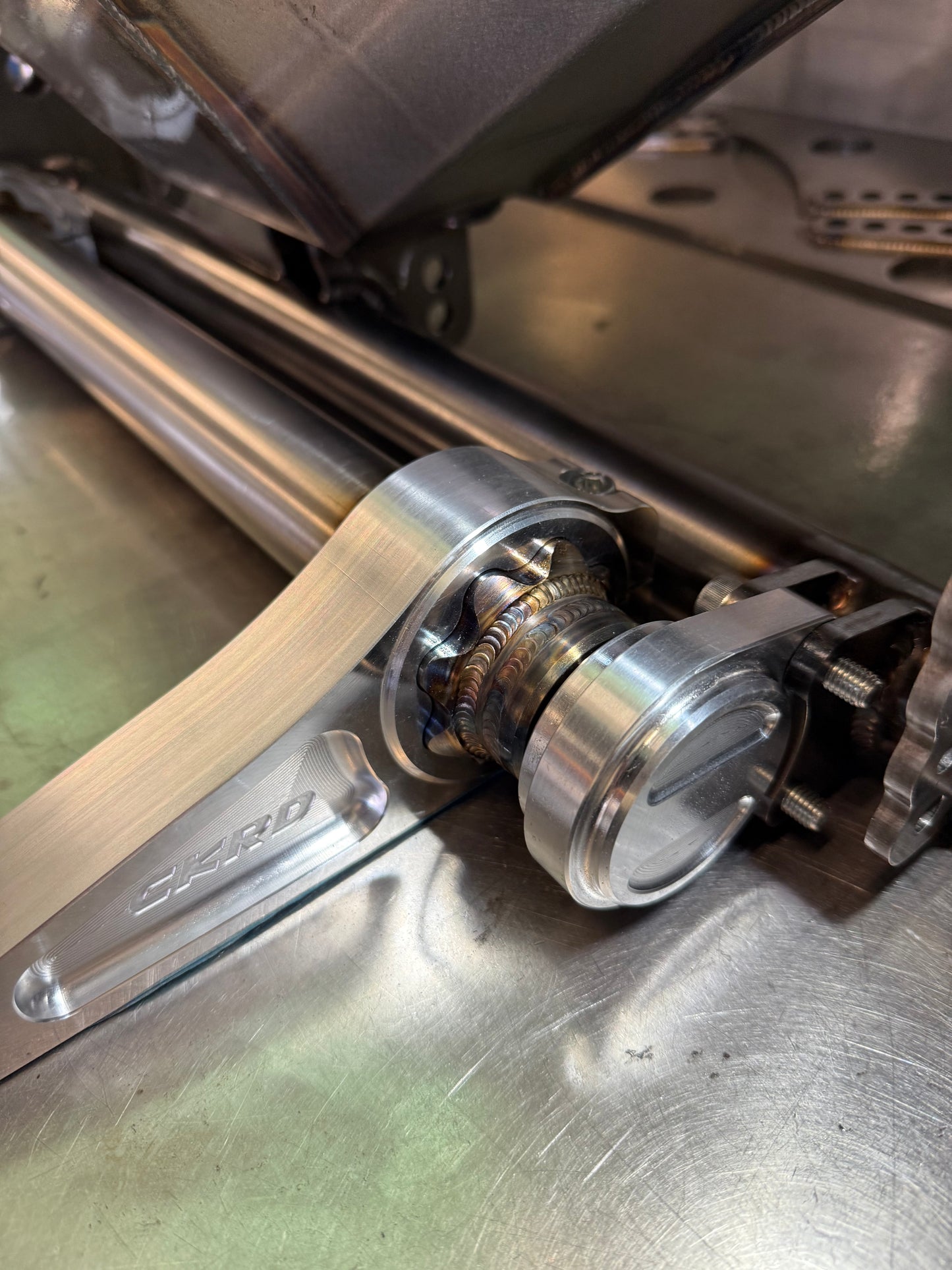

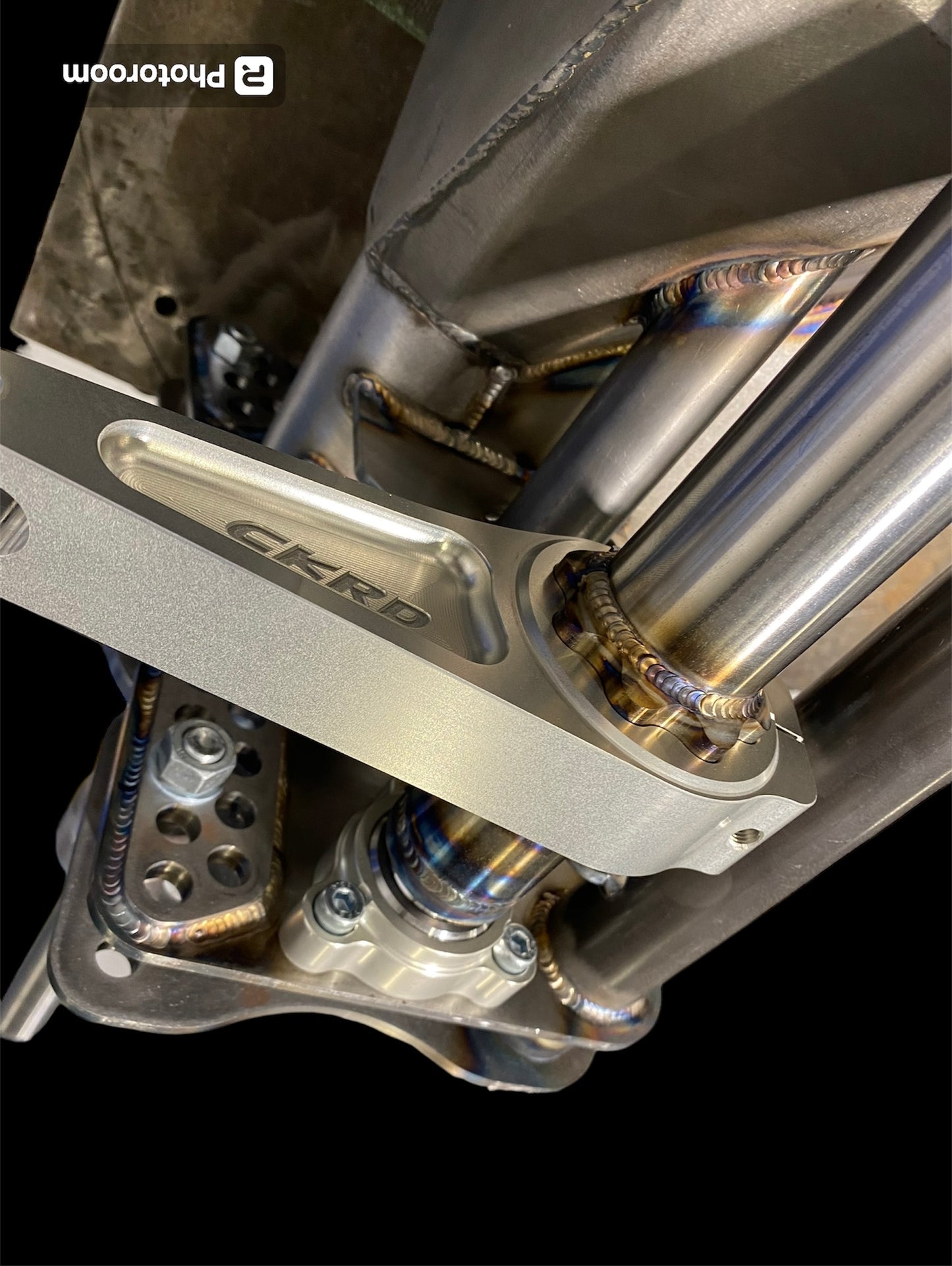

Chassis mount/diff brackets:

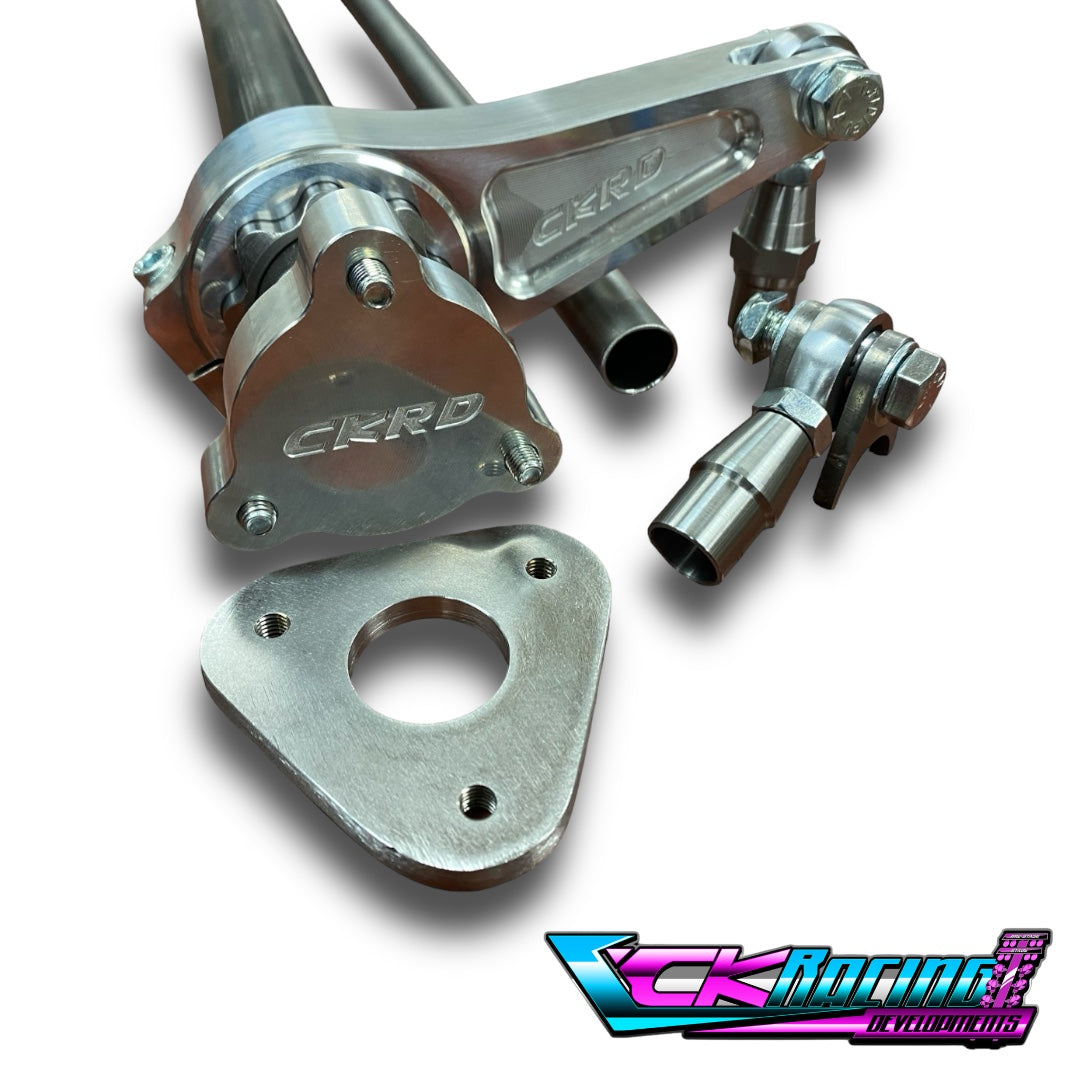

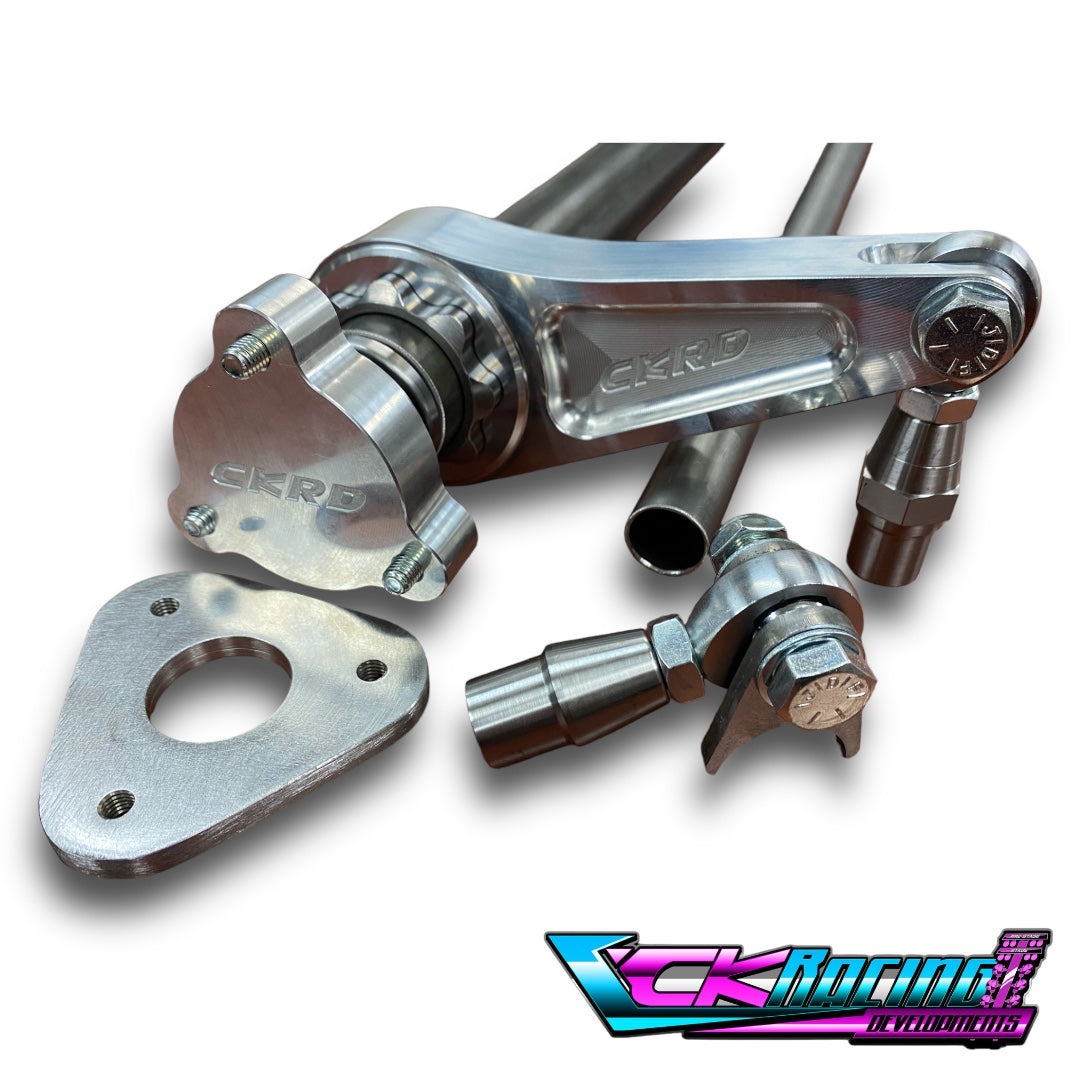

We supply you with 2 plates with threads so you can weld onto the side of your chassis, or even to the side of your diff brackets depending on your application. From that, our 3 bolt bearing mount will bolt up and complete your anti-roll bar location.
Tube mount:
We supply you with 4 tubs with a 1-5/8" notch which bolts directly to the bearing holder. This then allows you to mount the anti-roll bar off a horizontal tube on the chassis or even off a tube on the diff.

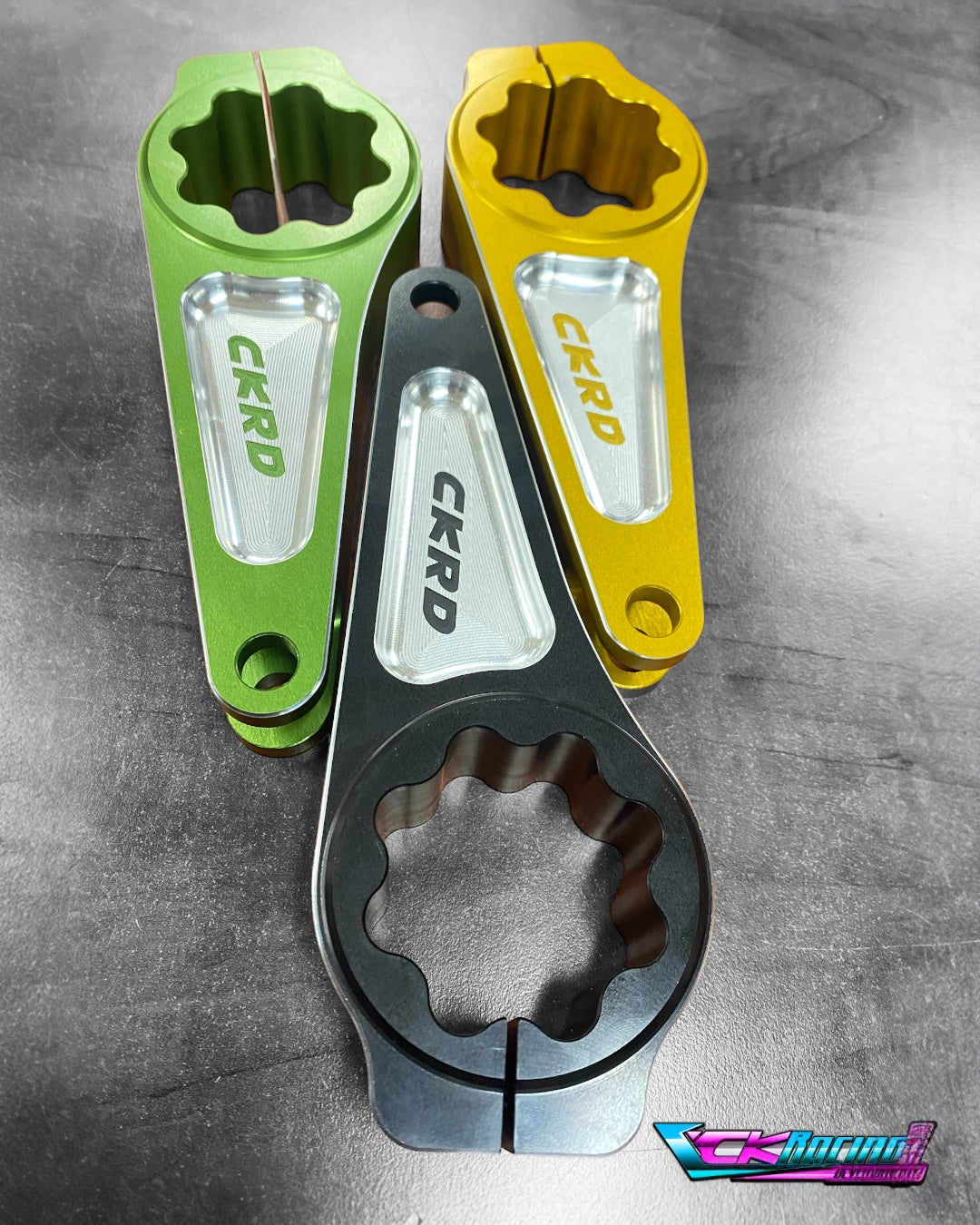

Custom colours are available. Please email for more information.
